Forging

Forging is the process by which metal is heated and is shaped by plastic deformation by suitably applying compressive force. Usually the compressive force is in the form of hammer blows using a power hammer or a press.

Forging refines the grain structure and improves physical properties of the metal. Forgings are consistent from piece to piece, without any of the porosity, voids, inclusions and other defects. Thus, finishing operations such as machining do not expose voids, because there aren't any. Also coating operations such as plating or painting are straightforward due to a good surface, which needs very little preparation.

Investment Casting Process

Forging Process

Forging is the process by which metal is heated and is shaped by plastic deformation by suitably applying compressive force.

Features

  • Nexus Engineering can offer opened as well as close die forging. Wide range of metal specification.

  • Wide range of metal specifications.

  • Flexibility in ordering.

Range and capacity

  • Weight up to 120 kg single pcs.
  • Material Carbon Steel, Low Alloy steel and Stainless Steel up to 10 kg per pce.
  • Brass forging up to 1200 gms.
  • Annual capacity 450 MT.

FORGING PROCESS

A step-by-step journey from design to finished product

01

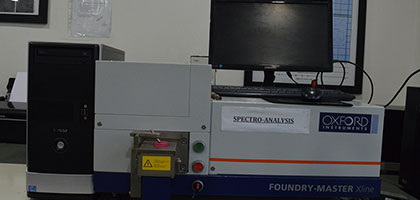

Our Equipped Labs

Our Equipped Labs

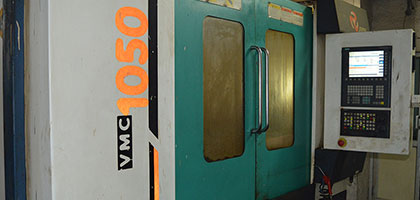

CAD and CAM facility
02

CAD and CAM facility

03

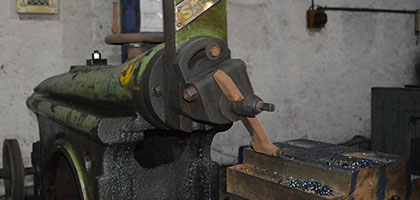

Die Shop

Die Shop

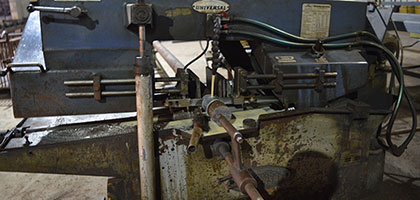

Cutting Shop
04

Cutting Shop

05

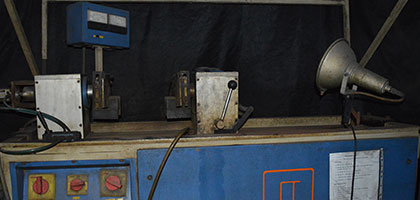

QA and QC Process

QA and QC Process

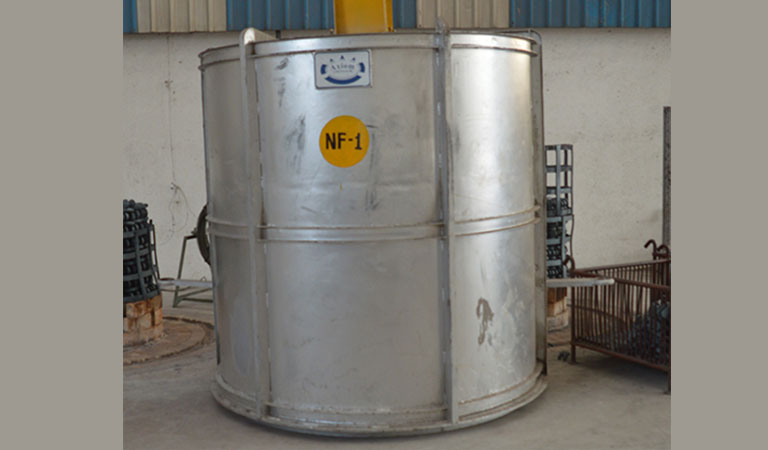

Heat Treatment Process
06

Heat Treatment Process

07

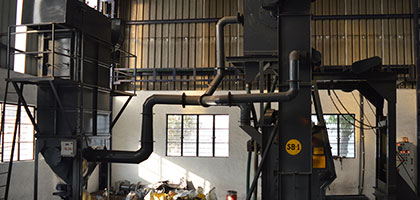

Shot Blasting Process

Shot Blasting Process

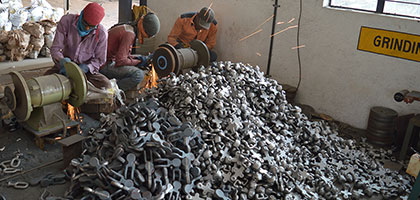

Fettling Shop
08

Fettling Shop

09

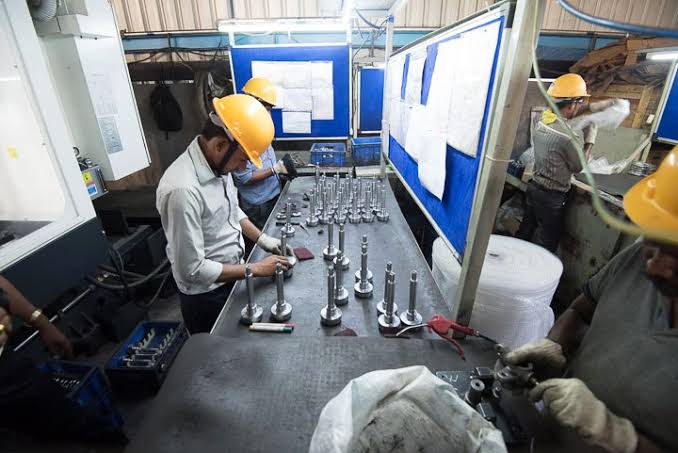

Final Inspection

Final Inspection
